Steel cord conveyor belt overview
Built for long-distance, heavy-duty conveying.
Steel cord conveyor belts use steel cords as tensile reinforcement for demanding material conveying systems in mining, quarrying, cement production and bulk material handling.
Available configurations cover strength ratings from ST630 to ST5400 and belt widths from 500 mm to 2400 mm. Steel cord diameter, cover thickness, belt type and supplied length should be selected around the conveyor design and operating conditions.
Configuration priorities
A range built around the duty.
Final values should be confirmed against the conveyor layout, operating conditions and project specification.
Strength range
Available ratings extend from ST630 to ST5400 for different heavy-duty conveying requirements.
Steel-cord reinforcement
Steel cord diameter options range from 3.0 mm to 6.0 mm within the available product range.
Configurable covers
Cover thickness options from 3 mm to 12 mm allow specification around the intended application.
Splicing method
Hot vulcanized splicing is the specified joining method for this steel cord belt range.
Application environments
Heavy-duty conveying across core industries.
The correct belt construction depends on the material, capacity, conveyor geometry and operating conditions.
Mining
Material conveying in demanding mining operations and long conveyor systems.
Quarry & Aggregate
Material transfer duties in quarrying and aggregate conveying systems.
Cement Production
Heavy-duty conveying applications within cement production facilities.
Bulk Material Handling
Continuous conveying duties in bulk material handling systems.

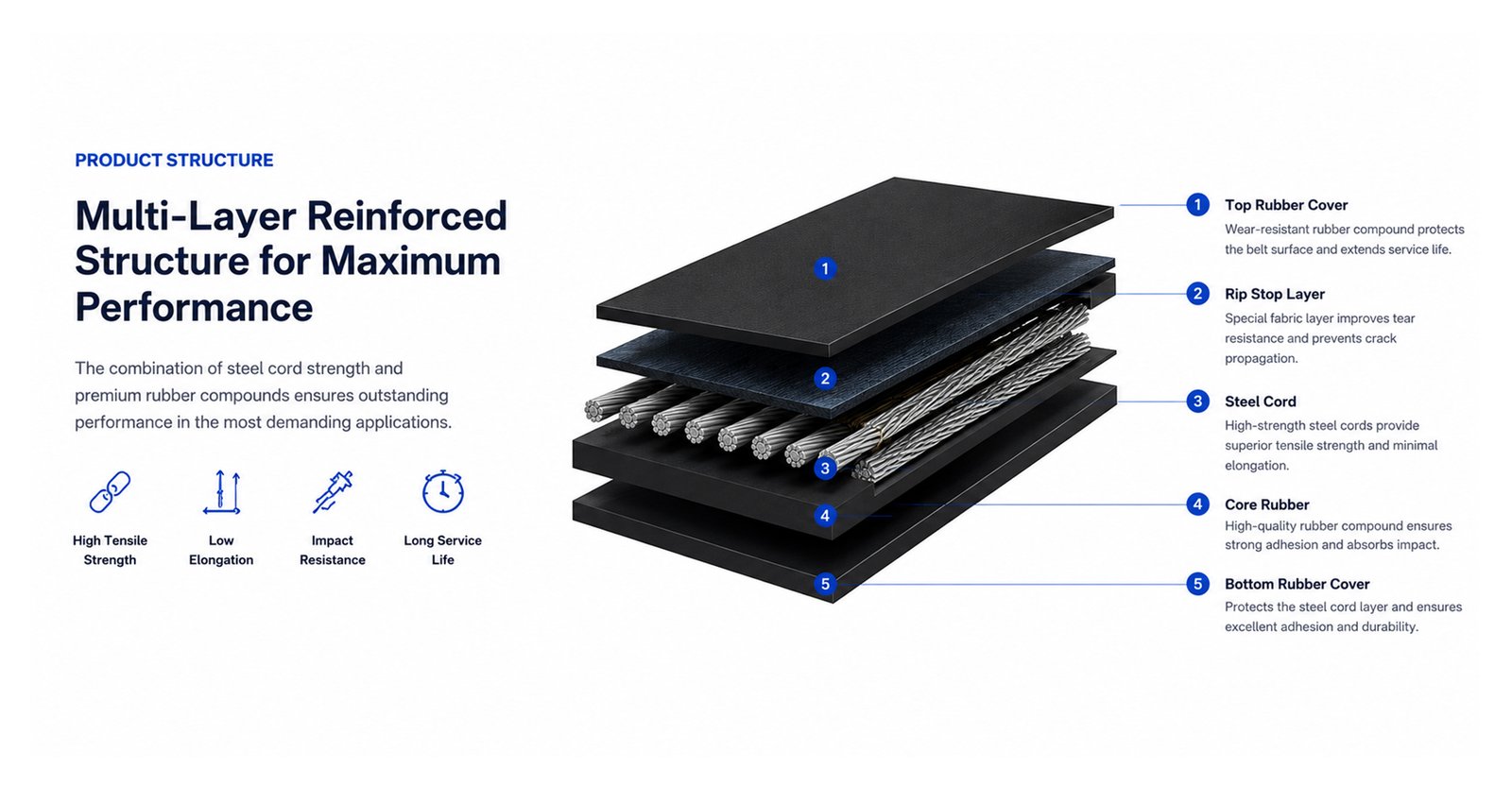

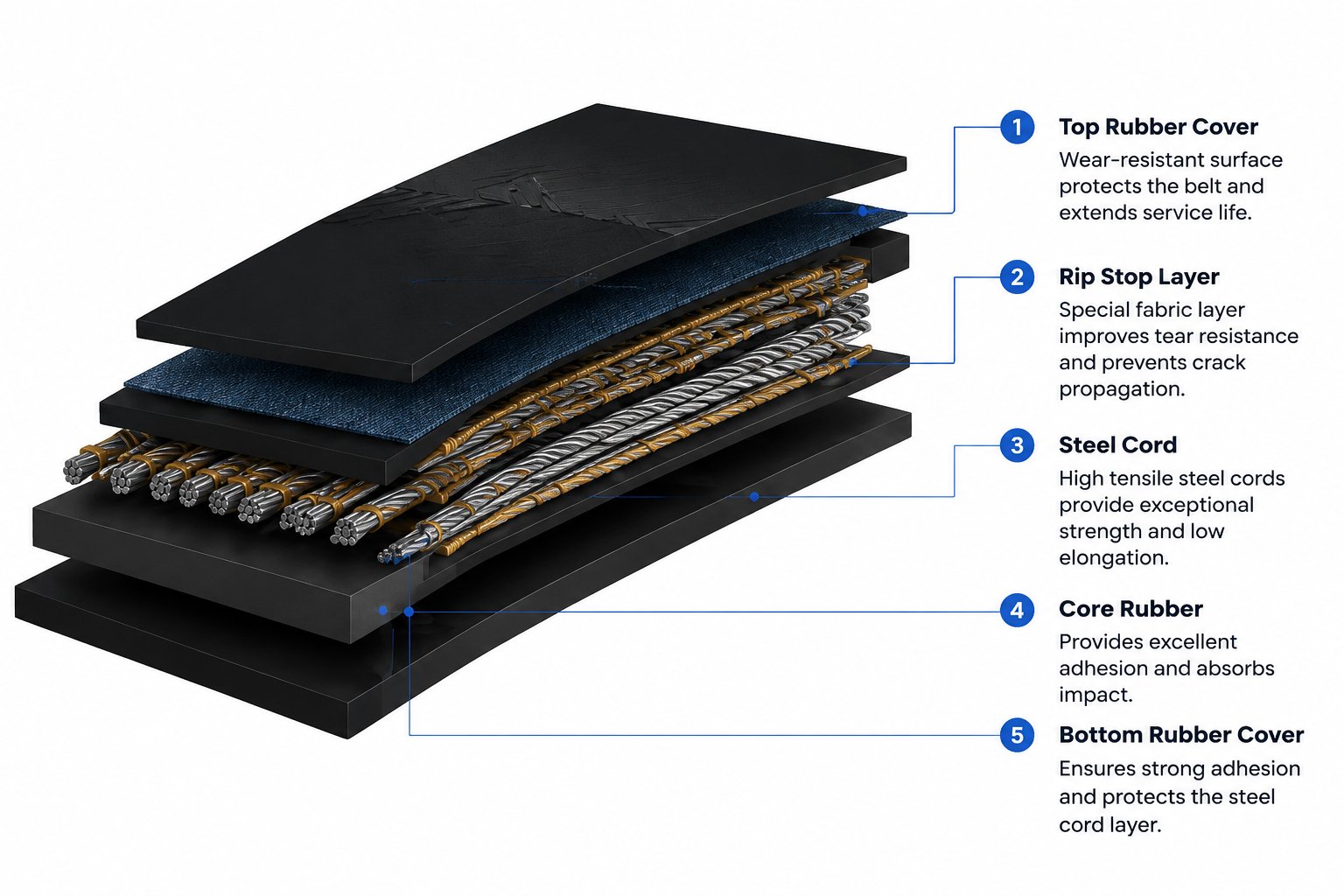

Construction and selection
Steel-cord reinforcement configured to the project.
The belt uses steel cords as its tensile reinforcement. Each available parameter should be confirmed as a complete system rather than selected in isolation.
Technical reference
Reference specifications.
The following values reproduce the current available range. Final values and compatible combinations should be confirmed against the conveyor duty and purchase specification.
| Item | Available range / reference |
|---|---|
| Belt width | 500–2400 mm |
| Strength rating | ST630–ST5400 |
| Steel cord diameter | 3.0–6.0 mm |
| Cover thickness | 3–12 mm |
| Listed belt type | ST / S / Z |
| Supplied length | Up to 1000 m |
| Splice type | Hot vulcanized |
| Operating temperature | −25°C to 80°C |
| Safety factor | ≥6 |
| Application | Heavy-duty conveying |
Specifications are subject to technical confirmation. Share the conveyor data and required standard when requesting a quotation.
Selection checklist
What to send for belt selection.
Complete operating information helps reduce assumptions and supports a more useful technical review and quotation.
Required rating
Belt width, strength rating, cover thickness and required supplied length.
Conveyor data
Center distance, capacity, speed, inclination and pulley arrangement.
Operating conditions
Material, temperature, loading conditions and working environment.
Supply details
Required standard, quantity, roll length, packaging and destination.
Frequently asked questions
Before requesting a quotation.
What belt widths and strength ratings are available?
The listed range covers belt widths from 500 mm to 2400 mm and strength ratings from ST630 to ST5400. The final combination should be confirmed for the conveyor duty.
What steel cord diameter and cover thickness can be supplied?
Steel cord diameters are listed from 3.0 mm to 6.0 mm and cover thickness from 3 mm to 12 mm. These values should be selected as part of the complete belt specification.
What is the maximum listed supplied length?
The current reference range lists supplied lengths up to 1000 m, subject to the selected specification and project requirements.
How is the belt joined?
The specified joining method is hot vulcanized splicing. The splice arrangement and procedure should be determined for the selected belt and site conditions.
What operating temperature range is listed?
The listed range is −25°C to 80°C. Please provide the actual material and ambient temperatures so the required configuration can be confirmed.
Technical quotation
Share the conveyor duty for review.
Send the operating details you already have. The team can use them to review the belt rating, construction and quotation requirements.
- Belt width, rating and required length
- Material, capacity, speed and inclination
- Operating temperature and environment
- Quantity, packaging and destination
Request a quotation
Complete the form below and include as much operating information as possible.
