Sidewall conveyor belt overview
Designed for steep-angle material conveying.

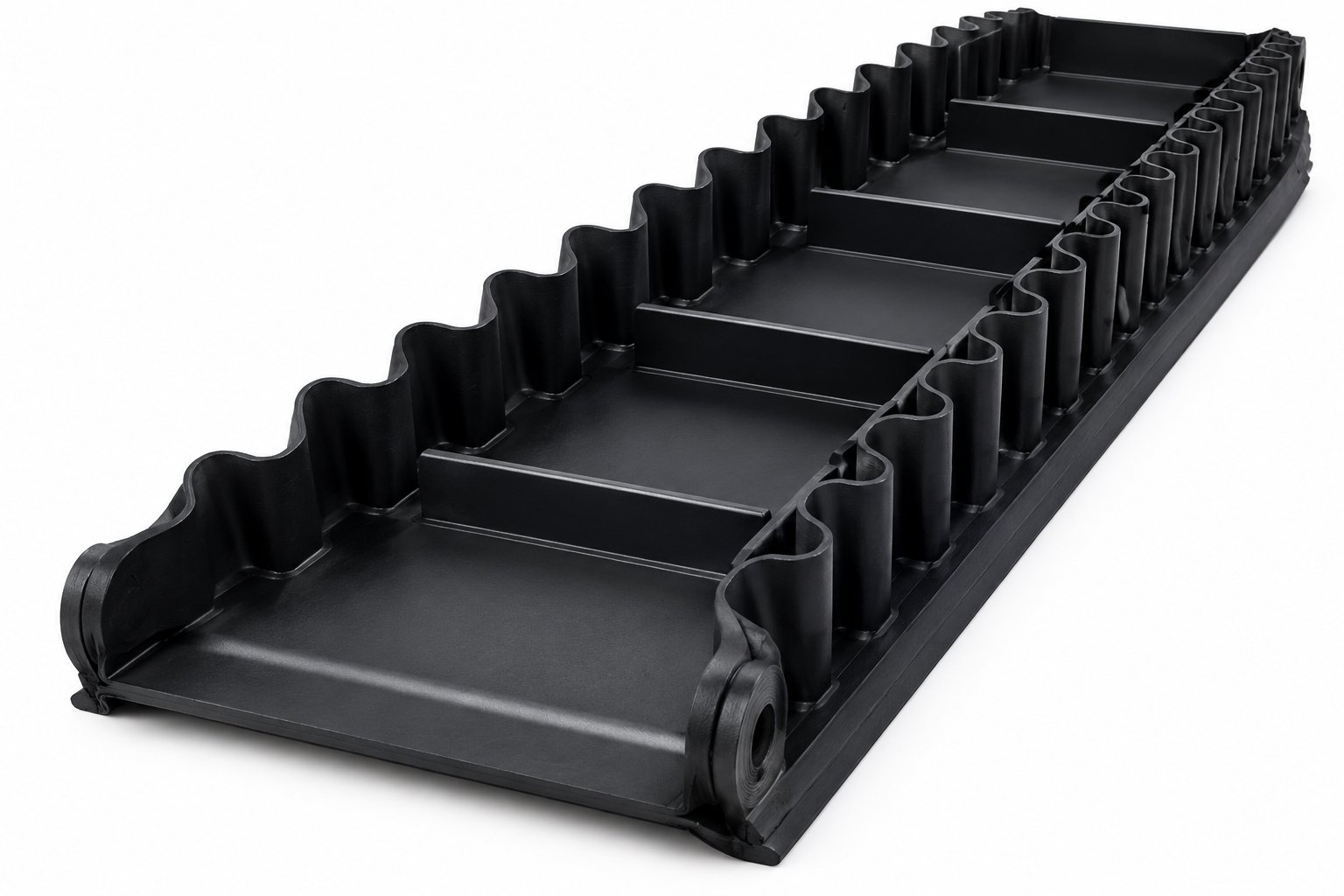

Sidewall conveyor belts combine a reinforced base belt with corrugated sidewalls and cleats for steep-angle conveying in mining, quarrying, cement production and bulk material handling.
Available configurations cover belt widths from 300 mm to 2200 mm, sidewall heights from 40 mm to 400 mm and cleat heights from 35 mm to 300 mm. The final configuration should be selected around the conveyed material, inclination and operating conditions.
Configuration priorities
A modular system built around the route.
Base belt, sidewall and cleat dimensions should be confirmed as one system against the conveyor layout and duty.
Steep-angle range
Inclination angles up to 90° are included in the current product range.
Sidewall options
Sidewall heights from 40 mm to 400 mm support different route and capacity requirements.
Cleat options
Cleat heights from 35 mm to 300 mm can be specified around the material and inclination.
Carcass options
EP and NN base belt constructions are included in the available product range.
Application environments
Steep-angle conveying across core industries.
The correct belt construction depends on the material, capacity, conveyor route, inclination and operating conditions.
Mining
For lifting and transferring bulk materials within mining conveying systems.
Quarry & Aggregate
For steep routes handling quarry and aggregate materials.
Cement Production
For inclined material transfer within cement production facilities.
Bulk Material Handling
For compact conveying layouts that reduce intermediate transfer points.
Construction and selection
Base belt, sidewalls and cleats specified together.

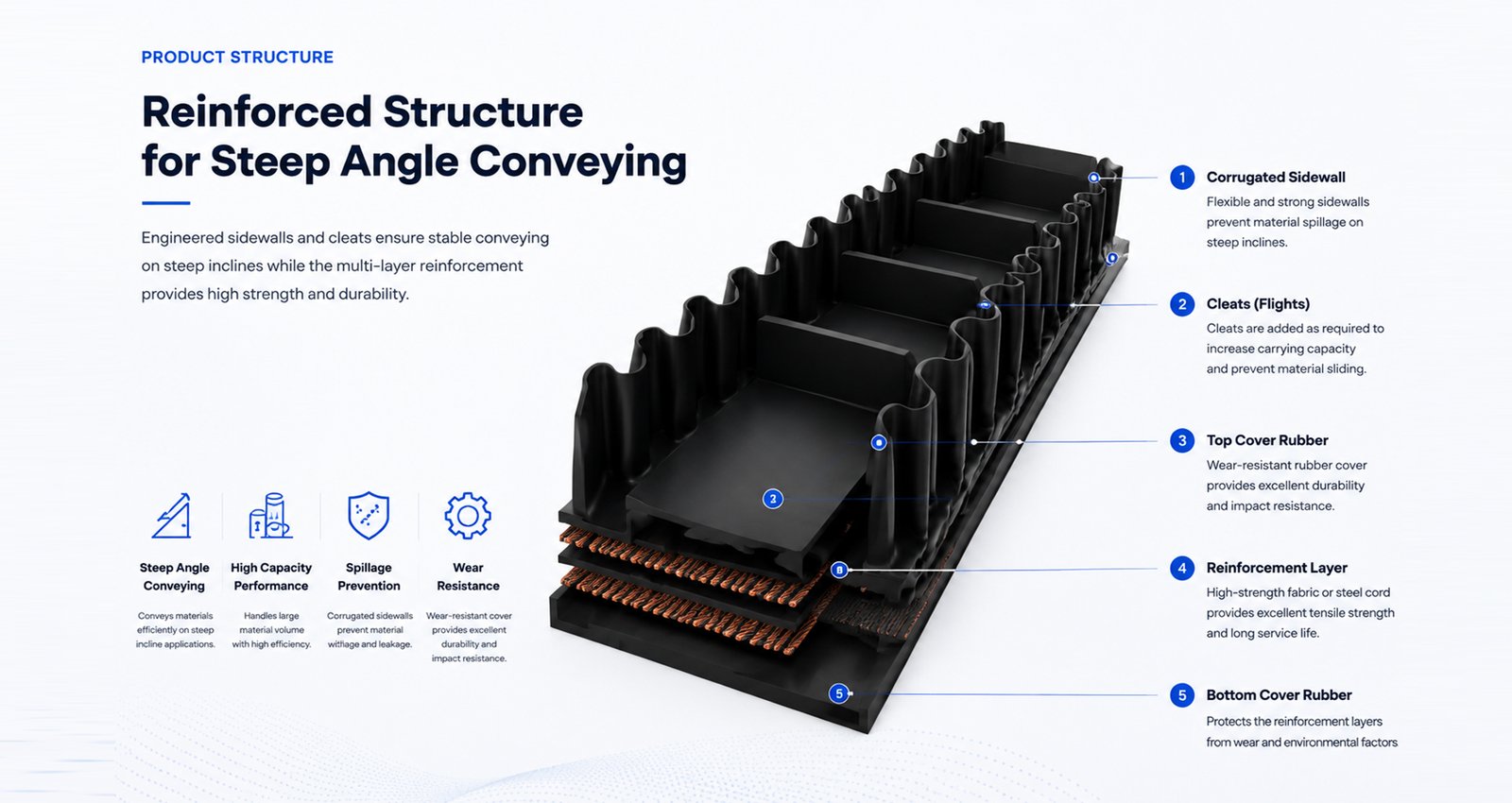

A sidewall conveying system combines the base belt with corrugated sidewalls and transverse cleats. The dimensions should be confirmed against the conveyor geometry and material.
Technical reference
Reference specifications.
The following values reproduce the current available range. Final values and compatible combinations should be confirmed against the conveyor duty and purchase specification.
| Item | Available range / reference |
|---|---|
| Belt width | 300–2200 mm |
| Sidewall height | 40–400 mm |
| Cleat height | 35–300 mm |
| Belt type | EP / NN |
| Inclination angle | Up to 90° |
| Temperature range | −20°C to 80°C |
| Cover grade | DIN-X / DIN-Y / DIN-W |
| Standard length | Up to 300 m |
| Application | Steep angle conveying |
| Standards | ISO 14890 / DIN 22102 / AS 1332 |
Specifications are subject to technical confirmation. Share the conveyor route, material data and required standard when requesting a quotation.
Selection checklist
What to send for belt selection.
Complete operating information helps reduce assumptions and supports a more useful technical review and quotation.
Material
Material name, bulk density, lump size and operating temperature.
Conveyor route
Belt width, capacity, speed, inclination and vertical lift.
Sidewalls and cleats
Required sidewall and cleat height, spacing and layout.
Supply details
Required standard, roll length, quantity, packaging and destination.
Frequently asked questions
Before requesting a quotation.
What belt widths and inclination angles are available?
The listed range covers belt widths from 300 mm to 2200 mm and inclination angles up to 90°. The final combination should be confirmed for the conveyor route and duty.
What sidewall and cleat heights can be supplied?
Sidewall heights are listed from 40 mm to 400 mm and cleat heights from 35 mm to 300 mm. The correct dimensions depend on the material, capacity and inclination.
What base belt types are available?
EP and NN base belt constructions are included in the current range. The selected carcass should be confirmed against the conveyor design and operating conditions.
What temperature range and cover grades are listed?
The listed temperature range is −20°C to 80°C, with DIN-X, DIN-Y and DIN-W cover grade options. Please provide the actual material and ambient temperatures for confirmation.
Which standards are referenced?
The current product specification references ISO 14890, DIN 22102 and AS 1332. Please state the required standard when requesting a quotation.
Technical quotation
Share the steep-angle conveying duty for review.
Send the operating details you already have. The team can use them to review the belt, sidewall and cleat configuration and quotation requirements.
- Material, capacity and lump size
- Conveyor route, inclination and vertical lift
- Belt width, sidewall and cleat requirements
- Required standards, quantity and destination
Request a quotation
Complete the form below and include as much operating information as possible.
