PVC conveyor belt overview
Clean, configurable conveying for light and medium duties.
PVC conveyor belts combine a PVC cover with a polyester fabric carcass for flexible, easy-to-maintain conveying in food, packaging, logistics and airport handling applications.
Available configurations cover belt widths from 300 mm to 2000 mm, thicknesses from 1 mm to 10 mm, multiple surface finishes and several colour options. The final configuration should be selected around the product, conveyor layout and operating requirements.
Configuration priorities
Surface, colour and construction matched to the duty.
The PVC cover, polyester fabric carcass and belt dimensions should be confirmed together against the product and conveyor system.
Surface options
Smooth, matte and textured finishes are included in the current product range.
Colour options
Green, white, blue and custom colours can be specified for different project requirements.
Compact pulley reference
The listed minimum pulley diameter is 25 mm, subject to the selected belt construction.
Temperature range
The current reference range is −10°C to 80°C; actual conditions should be provided for confirmation.
Application environments
Built around clean and efficient material flow.
Surface finish, colour, thickness and any industry-specific requirements should be confirmed for the intended application.
Food Processing
For product conveying where the required hygiene or food-contact standard is confirmed as part of the specification.
Packaging Lines
For light and medium-duty movement through packing, sorting and production processes.
Logistics & Warehousing
For cartons, parcels and general goods in distribution and warehouse conveyor systems.
Airport Conveying
For baggage and general handling duties where the selected surface and construction match the system.

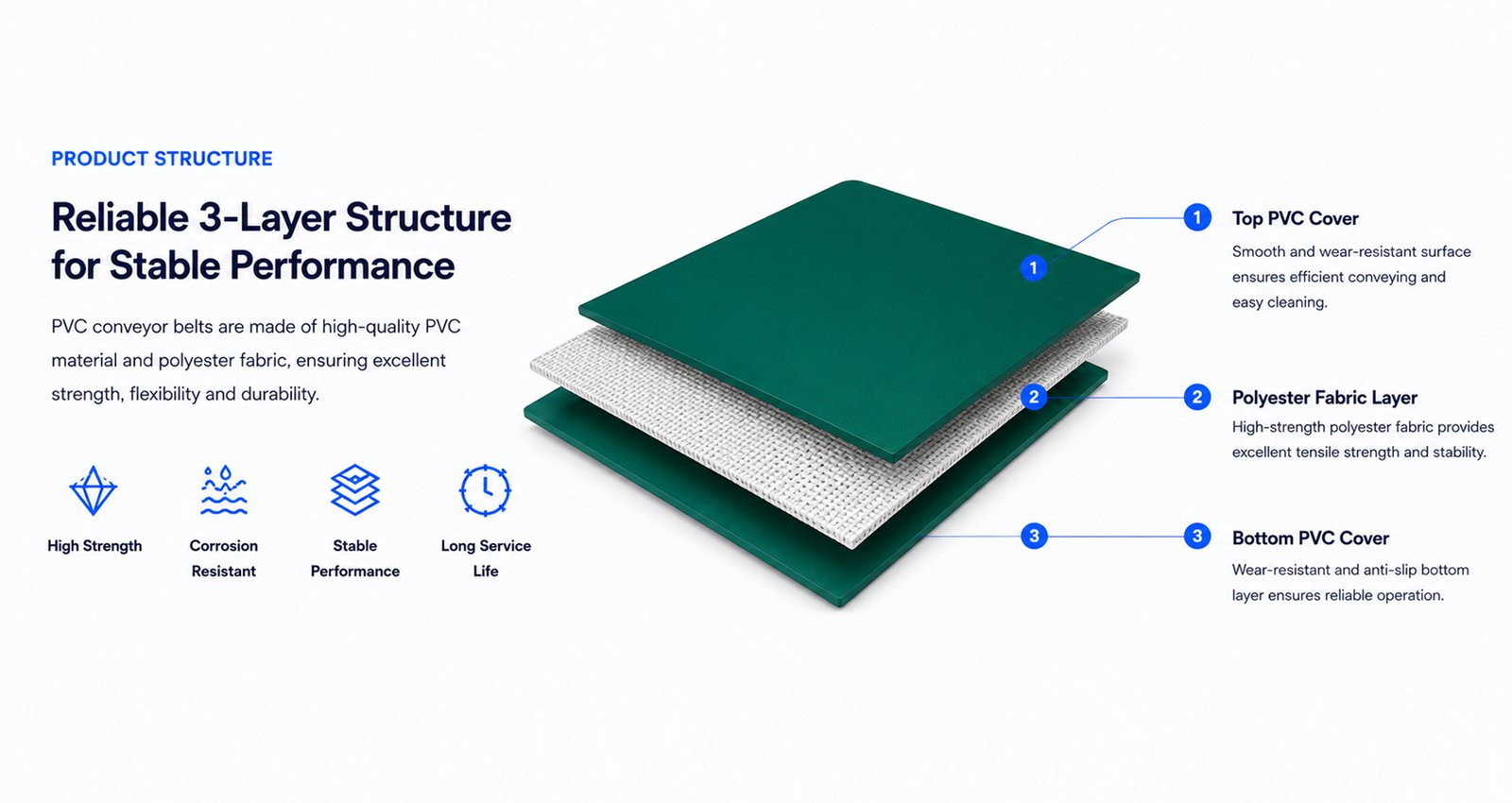

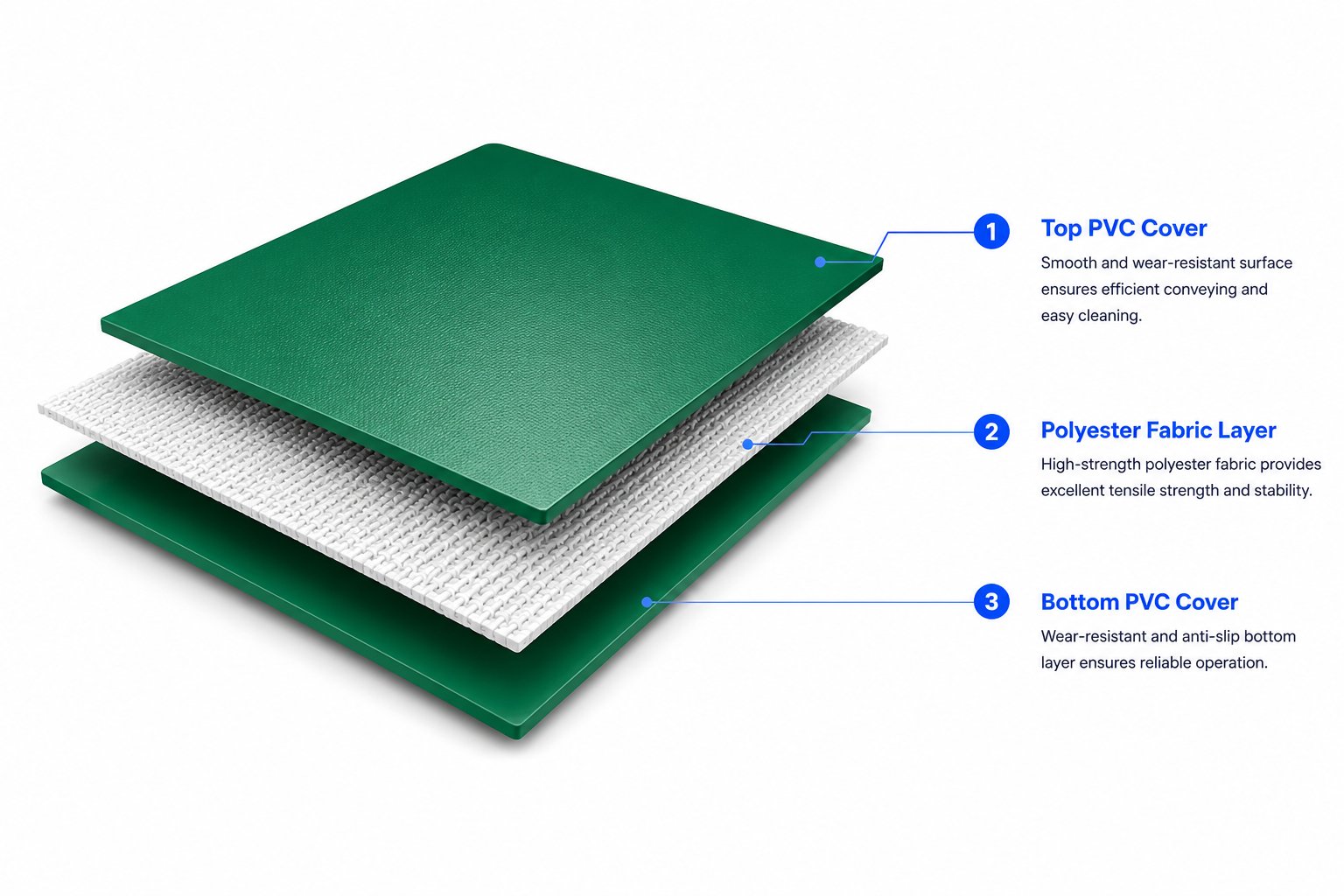

Construction and selection
PVC cover and polyester fabric selected as one belt.
Material, thickness, surface finish and colour should be reviewed together against the conveyed product, pulley arrangement and operating conditions.
Technical reference
Reference specifications.
The following values reproduce the current available range. Final values and compatible combinations should be confirmed against the conveyor duty and purchase specification.
| Item | Available range / reference |
|---|---|
| Belt width | 300–2000 mm |
| Belt thickness | 1–10 mm |
| Colour | Green / White / Blue / Custom |
| Surface finish | Smooth / Matte / Textured |
| Material | PVC + Polyester Fabric |
| Minimum pulley diameter | 25 mm |
| Standard length | Up to 100 m per roll |
| Temperature range | −10°C to 80°C |
| Splice type | Hot vulcanized |
| Application | Food, Packaging, Logistics and Airport Conveying |
Specifications are subject to technical confirmation. Share the conveyed product, conveyor data and any required industry standard when requesting a quotation.
Selection checklist
What to send for belt selection.
Complete operating information helps reduce assumptions and supports a more useful technical review and quotation.
Conveyed product
Product type, dimensions, weight, temperature and any contact requirements.
Conveyor data
Belt width, conveyor length, capacity, speed, load and pulley diameters.
Belt configuration
Required thickness, colour, surface finish and operating environment.
Supply details
Roll length, quantity, splice requirement, packaging and destination.
Frequently asked questions
Before requesting a quotation.
What belt widths and thicknesses are available?
The listed range covers belt widths from 300 mm to 2000 mm and thicknesses from 1 mm to 10 mm. The final combination should be confirmed for the conveyor duty.
Which colours and surface finishes are listed?
Current colour options are green, white, blue and custom. Listed surface finishes are smooth, matte and textured.
What is the listed minimum pulley diameter?
The current reference value is 25 mm. Compatibility depends on the selected belt construction and conveyor arrangement.
What temperature range is listed?
The listed range is −10°C to 80°C. Please provide the actual product and ambient temperatures for technical confirmation.
Can the belt be selected for food or other controlled applications?
Food processing is included in the listed applications, but the required hygiene, contact or industry standard must be stated and confirmed for the supplied belt.
Technical quotation
Share the conveying duty for review.
Send the operating details you already have. The team can use them to review the PVC belt configuration and quotation requirements.
- Conveyed product and operating temperature
- Belt width, length, speed and pulley diameters
- Thickness, colour and surface requirement
- Required quantity, standards and destination
Request a quotation
Complete the form below and include as much operating information as possible.
